FORMING HOLDER

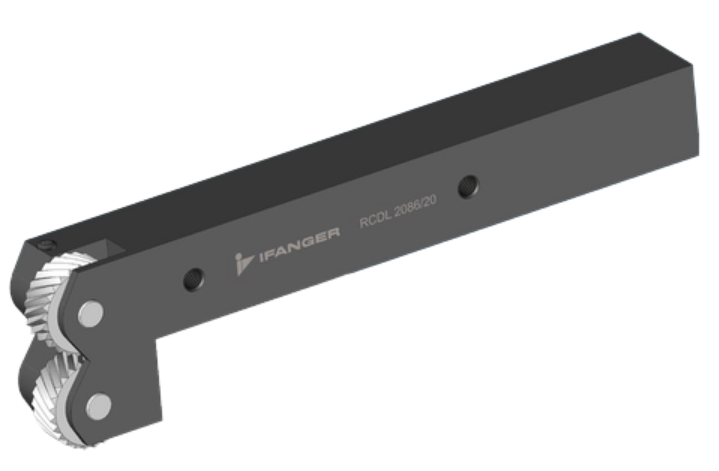

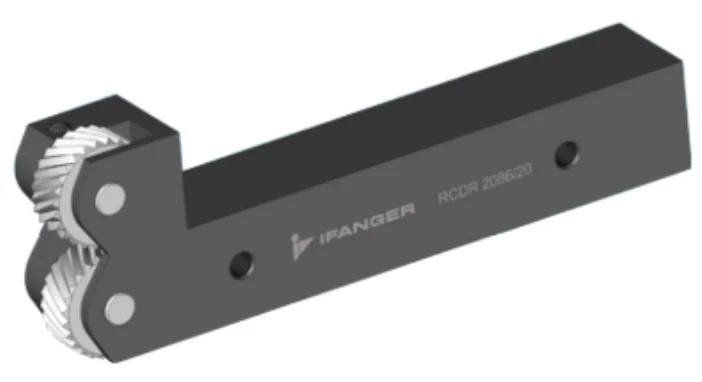

RCDL / RCDR -- ダブルローラー用転造ホルダー
綾目ローレット加工用。2枚の転造ローラーを搭載するダブルホルダー。RCDL：左勝手、RCDR：右勝手。
Features
製品の特長
- ダブルローラーで綾目ローレット加工が可能
- RCDL（左勝手）とRCDR（右勝手）をラインナップ
- CNC旋盤・汎用旋盤に対応
- シャンク径 S = 6～12mm
Dimensions

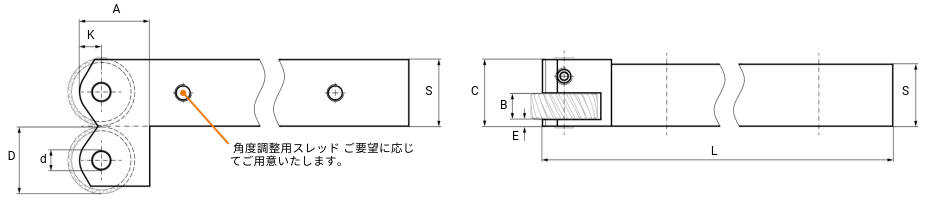

寸法表
対応ローラー（駒）
| 綾目 30° | RDBL-30° + RDBR-30° / RDGV-30° + RDGE-30° |
| 綾目 45° | RDBL-45° + RDBR-45° / RDGV-45° + RDGE-45° |
| S | C | E | L | A | K | Ref. No. | D | B | d | ø min. | ø max. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 10 | 1.5 | 120 | 10.0 | 3.0 | RCDL 0633/08 | 8 | 3 | 3 | 0.5 | 2 |
| 7 | 10 | 1.5 | 120 | 10.0 | 3.0 | RCDL 0733/08 | 8 | 3 | 3 | 0.5 | 2 |
| 7 | 11 | 1.5 | 120 | 10.0 | 3.0 | RCDL 0743/08 | 8 | 4 | 3 | 0.5 | 2 |
| 8 | 10 | 1.5 | 135 | 10.0 | 3.0 | RCDL 0833/08 | 8 | 3 | 3 | 0.5 | 2 |
| 8 | 10 | 1.5 | 135 | 10.0 | 3.0 | RCDL 0833/10 | 10 | 3 | 3 | 2.0 | 8 |
| 8 | 10 | 1.5 | 135 | 10.0 | 3.0 | RCDL 0843/08 | 8 | 4 | 3 | 0.5 | 2 |
| 10 | 10 | 1.5 | 135 | 10.0 | 3.5 | RCDL 1033/08 | 8 | 3 | 3 | 0.5 | 2 |
| 10 | 10 | 1.5 | 135 | 10.0 | 3.5 | RCDL 1033/10 | 10 | 3 | 3 | 2.0 | 8 |
| 10 | 10 | 1.5 | 135 | 11.5 | 3.5 | RCDL 1043/08 | 10 | 4 | 3 | 0.5 | 2 |
| 10 | 12 | 1.5 | 135 | 10.0 | 3.5 | RCDL 1044/10 | 10 | 4 | 4 | 2.0 | 8 |
| 12 | 12 | 2.0 | 135 | 11.5 | 3.5 | RCDL 1244/10 | 10 | 4 | 4 | 2.0 | 8 |
RCDR

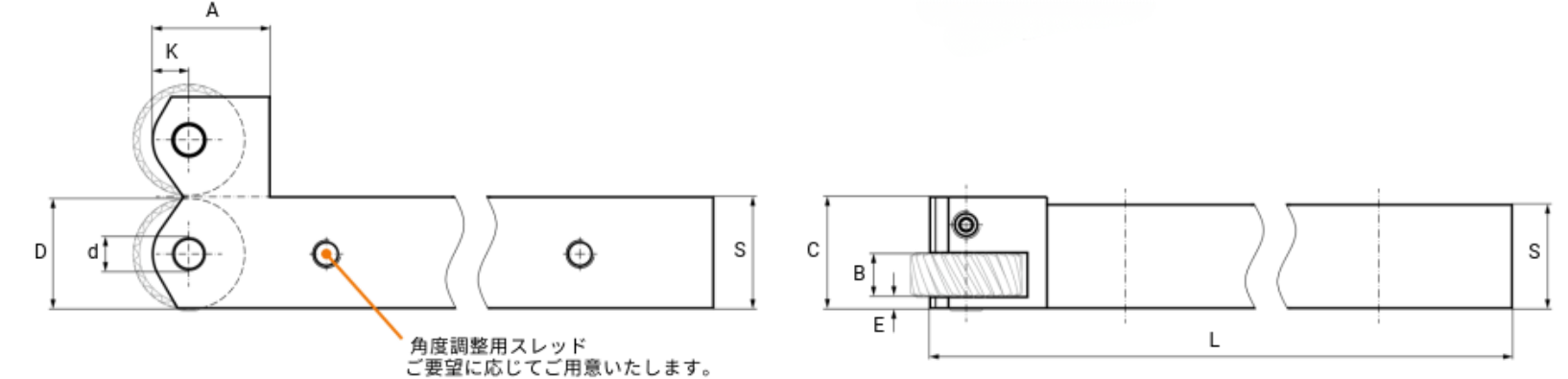

RCDR（右勝手）寸法表
| S | C | E | L | A | K | Ref. No. | D | B | d | ø min. | ø max. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 10 | 1.5 | 100 | 12 | 3.0 | RCDR 0833/08 | 8 | 3 | 3 | 0.5 | 2 |
| 8 | 10 | 1.5 | 100 | 12 | 3.5 | RCDR 0833/10 | 10 | 3 | 3 | 2.0 | 8 |
| 8 | 12 | 1.5 | 100 | 12 | 3.5 | RCDR 0843/10 | 10 | 4 | 3 | 0.5 | 2 |
| 10 | 10 | 1.5 | 100 | 12 | 3.0 | RCDR 1033/08 | 8 | 3 | 3 | 0.5 | 2 |
| 10 | 10 | 2.0 | 100 | 12 | 3.5 | RCDR 1033/10 | 10 | 4 | 3 | 2.0 | 8 |
| 10 | 10 | 2.0 | 100 | 12 | 3.5 | RCDR 1043/10 | 10 | 4 | 3 | 2.0 | 8 |
| 10 | 12 | 2.0 | 100 | 12 | 4.0 | RCDR 1044/10 | 10 | 4 | 4 | 2.0 | 8 |
| 12 | 12 | 2.0 | 115 | 18 | 5.0 | RCDR 1244/10 | 10 | 4 | 4 | 2.0 | 8 |
| 12 | 12 | 2.0 | 115 | 18 | 5.0 | RCDR 1244/15 | 15 | 4 | 4 | 8.0 | 20 |
| 12 | 12 | 2.0 | 115 | 18 | 5.5 | RCDR 1254/15 | 15 | 5 | 4 | 8.0 | 20 |
| 12 | 12 | 2.0 | 115 | 18 | 5.5 | RCDR 1255/15 | 15 | 5 | 5 | 8.0 | 20 |
| 16 | 16 | 2.0 | 120 | 18 | 5.5 | RCDR 1644/15 | 15 | 4 | 4 | 8.0 | 20 |
| 16 | 16 | 2.0 | 120 | 18 | 5.5 | RCDR 1654/15 | 15 | 5 | 4 | 8.0 | 20 |
| 16 | 16 | 2.0 | 120 | 18 | 5.5 | RCDR 1655/15 | 15 | 5 | 5 | 8.0 | 20 |
| 16 | 16 | 2.0 | 120 | 18 | 5.5 | RCDR 1664/15 | 15 | 6 | 4 | 8.0 | 20 |
| 20 | 20 | 2.0 | 120 | 18 | 5.5 | RCDR 2044/15 | 15 | 4 | 4 | 8.0 | 20 |
| 20 | 20 | 2.0 | 120 | 18 | 5.5 | RCDR 2054/15 | 15 | 5 | 4 | 8.0 | 20 |
| 20 | 20 | 2.0 | 120 | 18 | 5.5 | RCDR 2064/15 | 15 | 6 | 4 | 8.0 | 20 |
| 20 | 20 | 2.0 | 150 | 21 | 6.5 | RCDR 2066/20 | 20 | 6 | 6 | 20.0 | 120 |
| 20 | 20 | 2.0 | 150 | 21 | 6.5 | RCDR 2086/20 | 20 | 8 | 6 | 20.0 | 120 |
| 25 | 25 | 2.0 | 150 | 26 | 9.0 | RCDR 2586/25 | 25 | 8 | 6 | 20.0 | 120 |
注記
- 注文時の型式例：RCDL 0633/08 / RCDR 0833/08
